EZLED EDGE W LINE Kitchen lighting(700x150, 700x200)

  • EZLED EDGE W LINE
  • EZLED EDGE W LINE
ezLed

Create easy and comfortable products.
Sunil elecom LED lighting brand ezled

LED Edge-Lit Panel Light

Suitable for long time use
Energy saving with high efficiency
Ultralight and durable



LED Edge-Lit

Anti-glare, anti-shadow
① Reflective Sheet
② Light Guide Panel
③ LED
④ Light Diffusion Plate

Free choice of Color Temperature

Bright environment of 5700K
Soft & Delicate environment of 4000K
Warm environment of 3000K

*Color temperature can be made to order (contact sales team)

SOFT WHITE
DAYLIGHT
COOL DAYLIGHT

Maximum 50,000hours of Lifespan

5 times longer lifespan than Flourescent light
Botherless product in change for long lifespan

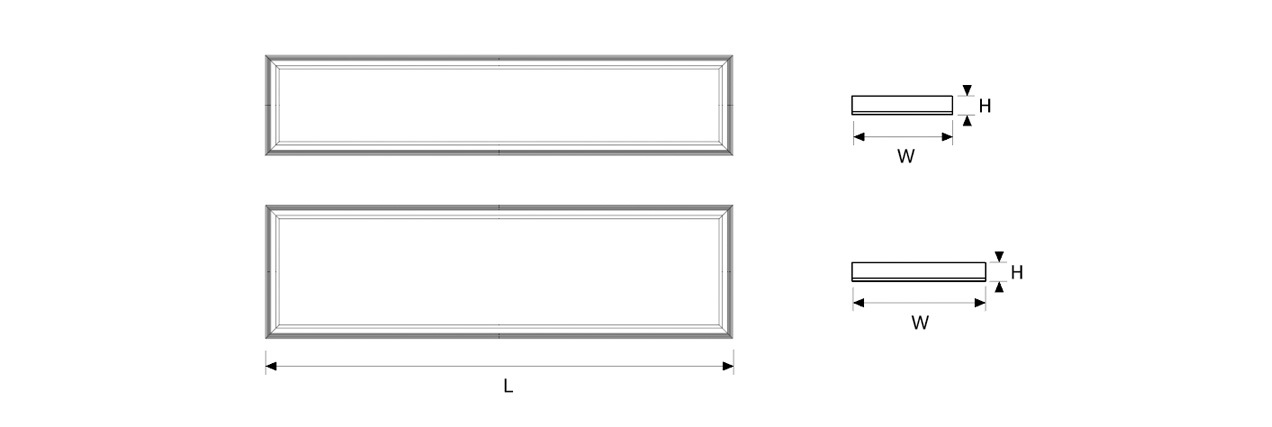

Dimension

*Scroll to the right.

Type Method L(mm) W(mm) H(mm) Weight(g)
EDGE W LINE 700x150 Fix Type 700 150 28 -
EDGE W LINE 700x200 Fix Type 700 200 28 -


Specification

*Scroll to the right.

Model Code Method Wattage
(W)		 Lumen
(lm)		 Efficiency
(lm/W)		 CCT
(K)		 CRI
(Ra)		 Certification
EDGE W LINE 700x150 HHW701530CA36C00 Fix Type 30 Over 2700 Over 90 5700 Over 75 KS, KC, KCC
EDGE W LINE 700x200 HHW702030CA36C00 Fix Type 30 Over 2700 Over 90 5700 Over 75 KS, KC, KCC
